Comprehensive Technical Capabilities

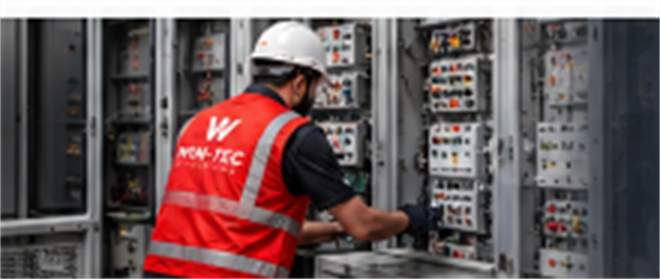

WIN-TEC ELECTRICAL operates a 35,000 sq. ft. precision manufacturing plant specializing in the engineering, sheet metal fabrication, electrostatic powder coating, and assembly of low-voltage power and control switchboards. Every panel is type-tested and built with Form 2 to Form 4 internal separation conforming to IEC 61439-1/2.
Scope of Engineering Solutions
- Main Distribution Boards (MDB) with rated busbars up to 6300A and Form 4b segregation
- Motor Control Centers (MCC) with fixed and fully withdrawable starter cassettes
- Automatic Transfer Switches (ATS) and multi-generator synchronizing panels
- Power Factor Correction (PFC) capacitor banks with detuned 7% or 14% harmonic filter reactors
- Sub-Distribution Boards (SDB), lighting distribution boards, and weather-proof outdoor feeder pillars
- Custom PLC and automation control enclosures with touch-screen HMIs and mimic panels
- Precision CNC copper busbar bending, punching, and tin/silver electroplating
Engineered For Zero Downtime
Every switchboard, cable containment network, and control package engineered by WIN-TEC undergoes exhaustive multi-stage Factory Acceptance Testing (FAT) before shipment.
Technical Specifications
| Rated Operating Voltage | 415V AC 3-Phase 50Hz (Insulation up to 1000V AC) |
|---|---|
| Main Busbar Capacity | From 100A up to 6300A certified electrolytic copper (99.9% Cu) |
| Short-Circuit Withstand | 50kA / 65kA / 85kA / 100kA for 1 second (Type-Tested) |
| Ingress Protection | IP42, IP54, IP55, and IP65 weatherproof outdoor ratings |
| Internal Segregation | Form 2a, Form 2b, Form 3b, Form 4a, Form 4b |
| Applicable Standards | IEC 61439-1 & 2, BS EN 61439, ISO 9001:2015 certified |
Typical Industry Applications
Request Technical Consultation
Submit your project details or technical single-line diagram (SLD). Our engineering department will respond within 24 hours.
Technical Brochure
Download comprehensive technical catalog, dimensions, rating curves, and single-line diagrams.
